LHY AS8 PRO+ Network Switch
The AS8-Pro+ series is a flagship-grade network switch developed by LHY Audio specifically for high-end audio streaming applications. Unlike conventional network switches, it is carefully engineered to meet the demands of Hi-Fi and Hi-End audio systems. It features an ultra-low-noise linear power supply, a precision reference clock system, a 10G/2.5G high-speed data zone, and a 1G galvanically isolated audio zone. Together, these elements are designed to deliver an exceptionally clean network signal to devices such as music streamers, music servers or bridges, NAS units, media servers, and smart TVs, while optimizing the performance of each connected component.
Built for Music Lover & Audiophiles
| Brand: LHY |
| Product Type: Audio Network Switches |
SW-10PRO
Built for Music Lover & Audiophiles
The SW-10PRO is a network switch purpose-built for high-end digital audio streaming. Designed for discerning audiophiles, it offers an integrated solution that delivers pure, high-precision, and stable network performance, combining advanced switching, Master Clock synchronization, and network isolation technologies into one meticulously engineered device.
The Master Clock section features a dual thermostatically-controlled SC-CUT OCXO with ultra-low Phase Noise better than > -110 dBc/Hz, paired with a top-tier PLL clock synthesizer. This configuration delivers the most accurate and stable clock signals to both switch zones.
In a high-end streaming audio system, the SW-10PRO elevates the listening experience with a remarkably lower noise floor, blacker background, greater clarity, and rock-solid imaging stability. By eliminating unwanted interference and optimizing clock precision, it unlocks the full potential of your music, revealing finer details, richer textures, and a deeper emotional connection to every performance.
Power. Foundation of good sound
To effectively isolate AC power interference and prevent cross-talk between different system sections, the SW-10PRO equipped with two ultra-low-noise NORATEL toroidal transformers. These provide independent power circuit paths for the OCXO Master Clock and the Network Switch circuitry.
Dual Mono Toroid Transformer ensures that the Master Clock and all clock distribution modules operate in an ultra-low-noise environment, further reducing phase noise and enhancing clock accuracy. At the same time, it delivers robust and stable power to the 2.5G/1G network controllers, SFP optical ports, and isolated zones.
CNC-Machined Solid Billet Aluminum Chassis
The chassis is precision CNC-machined from a solid block of aerospace-grade aluminum, significantly reducing overall resonance and increasing structural rigidity compared to standard assembled aluminum enclosures. This also enables effective isolation between functional sections, minimizing interference.
-

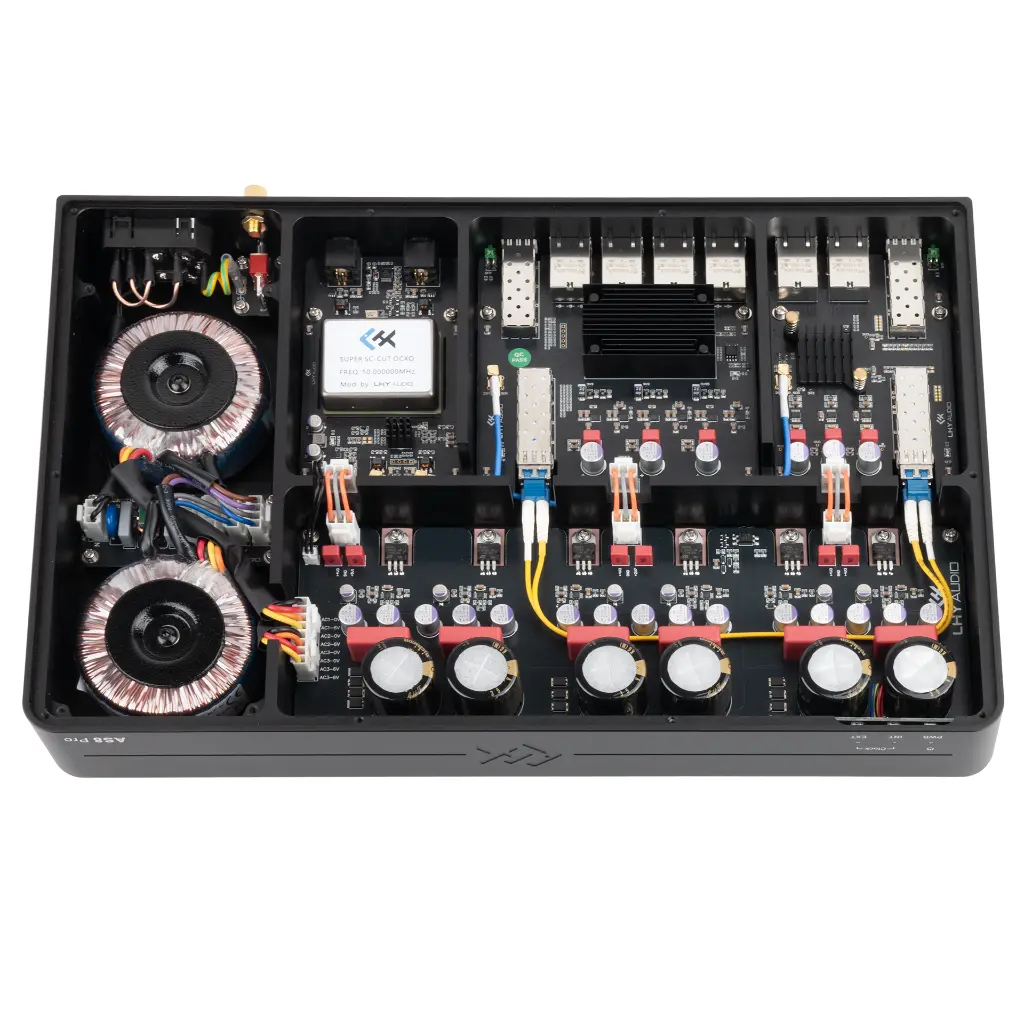

Compartmentalization
Additionally, the solid billet design allows for precise internal compartmentalization, enabling effective isolation between functional zones such as the clock module, power supply, and network switch circuits. This minimizes internal cross-interference and helps maintain signal purity. The high thermal conductivity of aluminum also contributes to passive heat dissipation, improving overall system stability and longevity without the need for noisy active cooling solutions.
Power. Foundation of good sound
To effectively isolate AC power interference and prevent cross-talk between different system sections, the SW-10PRO equipped with two ultra-low-noise NORATEL toroidal transformers. These provide independent power circuit paths for the OCXO Master Clock and the Network Switch circuitry.
Dual Mono Toroid Transformers
Dual Mono Toroid Transformer ensures that the Master Clock and all clock distribution modules operate in an ultra-low-noise environment, further reducing phase noise and enhancing clock accuracy. At the same time, it delivers robust and stable power to the 2.5G/1G network controllers, SFP optical ports, and isolated zones.
Ultra-Clean Power. Unmatched Performance.
SW-10PRO is purpose-built for enthusiasts in pursuit of the ultimate in audio fidelity and data performance. Its advanced power architecture features a total of 18 segregated multi-stage linear regulation circuits, designed to deliver ultra-clean, stable, and low-noise power to every critical subsystem.
Minimizing interference, reducing jitter
This ensures optimal operating conditions for the clock modules, switching engines, and optical interfaces—minimizing interference, reducing jitter, and preserving signal integrity throughout. The result is a genuine high-end solution that elevates both sonic realism and digital precision in serious streaming audio systems.
Timing Perfected
Reference Grade OCXO Master Clock
The Master Clock section features a dual thermostatically-controlled SC-CUT OCXO with ultra-low Phase Noise better than > -110 dBc/Hz, paired with a top-tier PLL clock synthesizer. This configuration delivers the most accurate and stable clock signals to both switch zones.
Each functional zone is physically and electrically segregated for optimal isolation.
Timing Perfected
Optical Isolation for Pure Audio Networking
The 2.5G high-speed main switching zone and the 1G ultra-quiet, isolated audio zone are linked via built-in dual single-mode optical fibers, delivering true optical-electrical isolation between network traffic and sensitive audio components.
This advanced architecture not only eliminates electrical noise and ground loop interference but also creates a clean, interference-free network environment—essential for achieving the highest level of digital audio streaming purity and stability.
TECHNICAL SPECIFICATIONS
Technical Highlights
- High-End 1G/2.5G Audiophile Ethernet Switch with Integrated OCXO Master Clock
- CNC-Machined Solid Billet Aluminum Chassis [Silver / Black]
- All-in-One Architecture: Segregated 2.5G Main Switching Zone + 1G Isolated Audio Zone + Ultra-Low Phase Noise Clock
- Built-in Dual Single-Mode Optical Fiber Links for Zone Isolation (Optical-Electrical Separation)
- AC Inlet: High-Quality IEC with Power Switch and Fuse Protection
- AC Noise Filtering: UK RIFA RFI Suppression Capacitors and EMI Filter
- Dual 50VA Audio-Grade Toroidal Transformers (Multicomp NORATEL Series)
- 18 Sets of Multi-Stage uV-Class Linear Power Regulation, Fully Linear , LDO
- Premium Vishay BC056 12x 4700uF Reservoir Capacitors
- SC-CUT Dual Thermostatically-Controlled OCXO with High-end PLL Synthesizer
- Ultra-Low Phase Noise: Better than -110 dBc/Hz
- Reclocking of Internal Network Zones & External Clock Output
- Master Clock Functionality: Two 10MHz BNC Outputs (50Ω-75Ω, Squarewave)
- Integrated Passive Thermal Management via Chassis Heatsinking
- Isolated Ground Terminal with Ground Lift Switch for Ground Loop Management

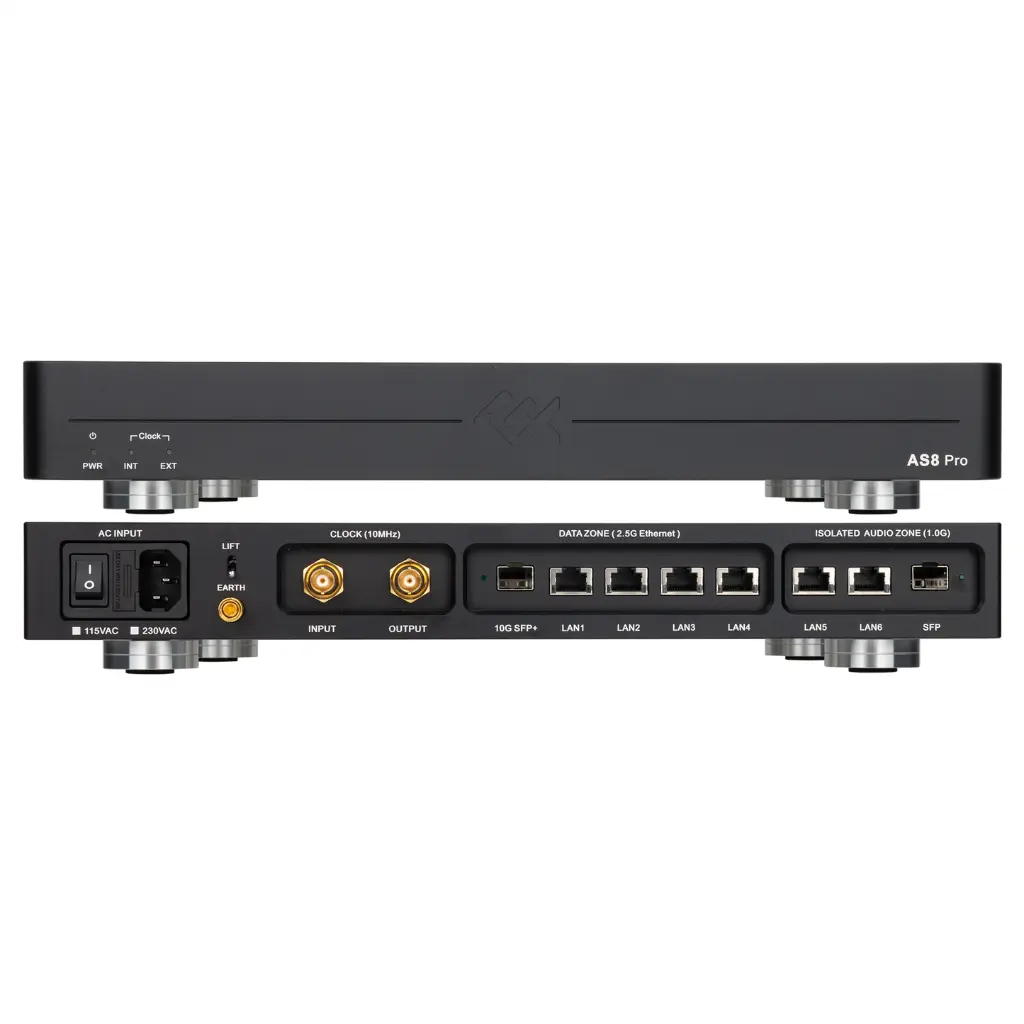

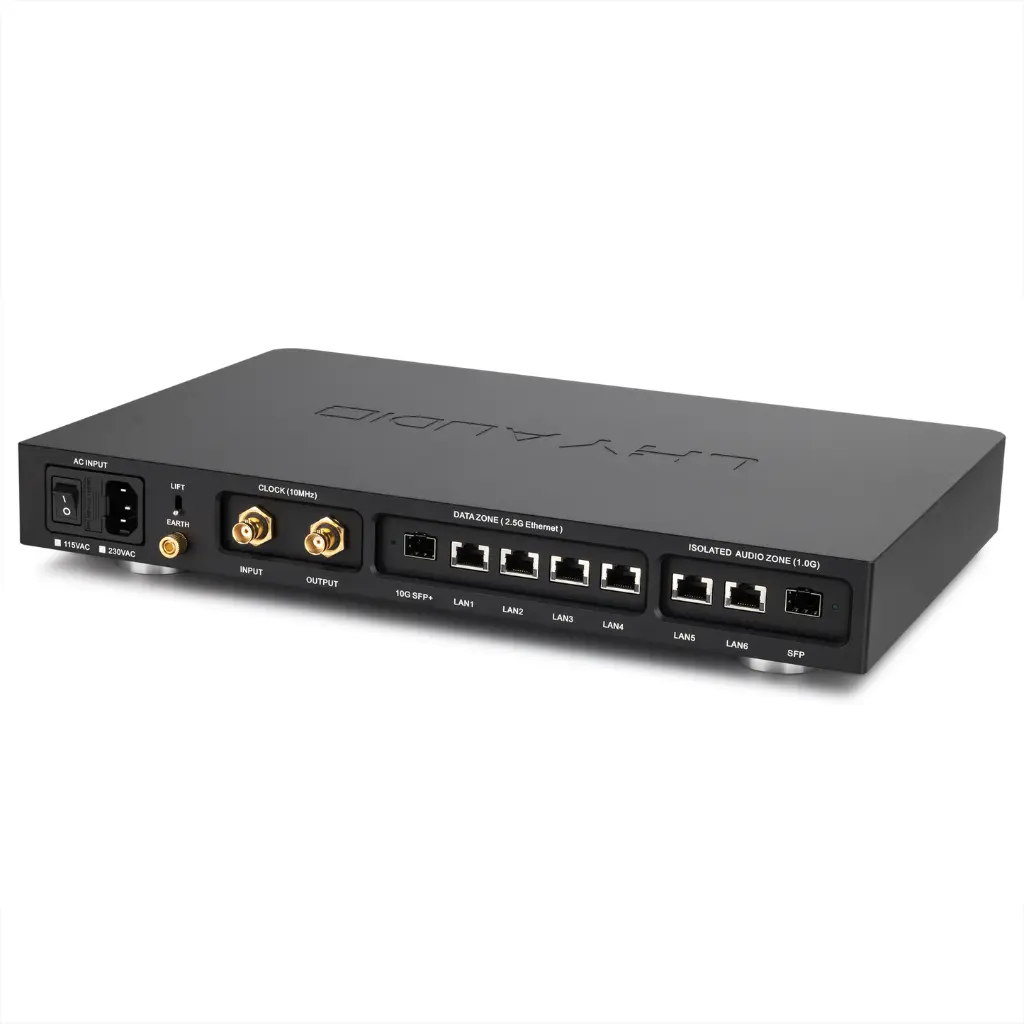

Connectivity
- 4 × RJ-45 2.5G Gigabit Ethernet Ports (Red Zone)
- 2 × RJ-45 Isolated 1G Gigabit Port (Green Zone - Audio)
- 1 × SFP Port for Fiber Input (Red Zone)
- 1 × SFP Port for Fiber Input (Green Zone - Audio)
- 2 × 10MHz Master Clock Outputs (BNC, 50Ω - 75Ω)
OCXO & Master Clock
- Oscillator Type: SC-CUT OCXO (Dual, Independent Chambers)
- Phase Noise: Better than -110 dBc/Hz @ 1Hz Offset
- Clock Distribution: Internal Zones & External Devices
- External Clock Output: 2 x 10MHz BNC, 50Ω-75Ω (Square Wave)
What’s in the Box
- SW-10PRO Audiophile Ethernet Switch
- Generic Power Cord
- OCXO Phase Noise and Alan Deviation Test Report
Dimensions & Weight
- Dimensions: 400mm (W) × 55mm (H) × 260mm (D)
- Weight: 5.5 kg
The SW-10PRO is intelligently engineered with a three-zone architecture, each optimized for specific roles within an audiophile streaming setup:—
- RED Zone — A 2.5G high-speed main switching zone, ideal for connecting high-bandwidth devices such as routers, NAS, and other peripheral network equipment.
- GREEN Zone — A dedicated 1G ultra-quiet audio zone, purpose-built for sensitive components like streamers, music servers, and network bridges, ensuring minimal noise and maximum signal purity.
- OCXO Clock Zone — An integrated ultra-low phase noise OCXO clock module, providing ultra-precise timing with superior phase stability, essential for reducing jitter and enhancing overall system coherence.
This all-in-one, fully segregated design allows each zone to function independently within its own electrically and physically isolated environment, eliminating cross-interference and preserving the integrity of both data and audio signals. The result is a balanced, high-performance network platform that delivers exceptional speed, purity, and timing accuracy across your entire digital audio chain.
