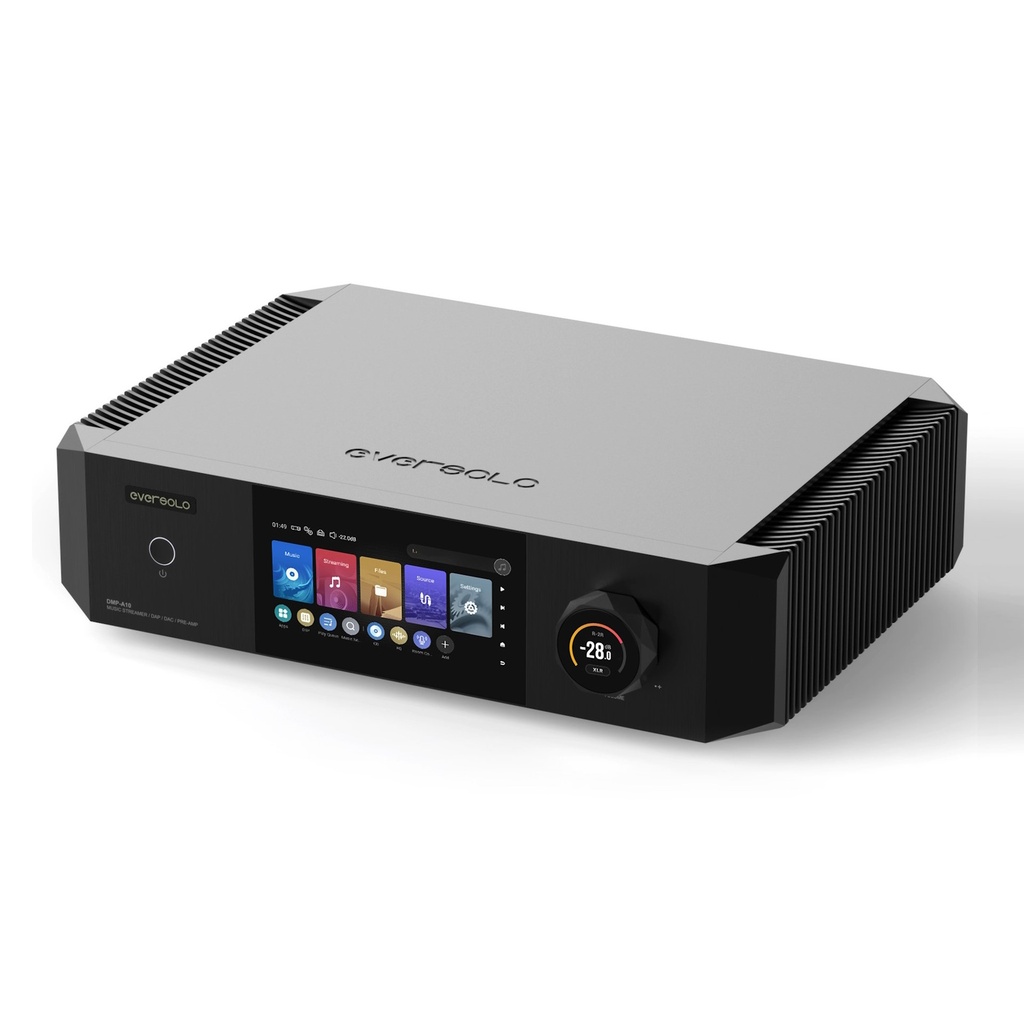

EVERSOLO – DMP-A10 high-end streamer ES9039 PRO DAC
Building on the legacy of its predecessor, the EverSolo DMP-A8, the DMP-A10 takes things up a notch with ES9039 PRO DAC chip and the XMOS XU-316 USB interface, supporting jaw-dropping high-resolution audio up to 32-bit/768kHz, native DSD512, and MQA for pristine sound quality.But that’s not all—under the hood, the AK7739VQ DSP processor and two ultra-high-precision OCXO clock oscillators ensure impeccable signal processing for a flawless listening experience. Whether you’re accessing high-resolution files from local storage, a home network, or streaming apps, the DMP-A10 delivers breathtaking audio clarity
| Marque: EverSolo |
| Product Type: Streamers réseau |
Eversolo DMP-A10: a high-end streamer
EVERSOLO DMP-A8
HIGHLIGHTS
- DAC chip AK4499EX+AK4191EQ DAC
- USB Interface XMOS XU316
- Supports up to PCM 32bit 768kHz, DSD512 and MQA
- DSP AK7739VQ Chip
- Bluetooth 5.0: SBC, AAC, aptX, aptX LL, aptX HD and LDAC
- R2R preamplifier stage
- Display potentiometer with custom interface
- 4 GB DDR RAM + 64 GB internal memory (plus external SSD slot)
- Lossless CD and metadata ripping via USB
- Advanced DSP room correction
- Dual subwoofer outputs
Next-Level DAC Solution ES9039PRO
Powered by the industry-leading ES9039PRO DAC chip, the DMP-A10 brings audio to life with its HyperStream IV architecture and enhanced signal processing capabilities, significantly reducing distortion and noise to provide pure audio output. It also introduces a new clock management series to minimize the impact of jitter on audio signals.
XMOS316 Audio Processor
using the third-generation XMOS316 processor, the DMP-A10 delivers faster processing and USB bandwidth, supporting lossless transmission of audio data. USB ports support up to DSD512 Native and PCM768@32bit. Optical and Coaxial ports support DOP64, PCM192@24Bit.
Cutting-Edge Global Technology
As a flagship all-in-one streamer, material selection for DMP-A10 is extremely meticulous. The DMP-A10 is built with audiophile-grade components from worldwide. WIMA capacitors from Germany, TI audio operational amplifiers from US, NICHICON audiophile capacitance and Murata SMT parts from Japan, every detail is engineered for superior sound quality.
DSP Room correction
With Eversolo Digital Room Correction, the DMP-A10 analyzes your listening environment with the high-precision microphone, adjusting sound frequencies through complex algorithms to eliminate acoustic issues. The result? A listening experience that feels more immersive and lifelike, tailored specifically to your space.
Dual linear power supplies
Eversolo has equipped its DMP-A10 with a dual power supply design. This configuration consists of a toroidal transformer and a low-noise linear power supply. This separates the audio circuits from the DMP-A10’s system circuits to avoid interference.

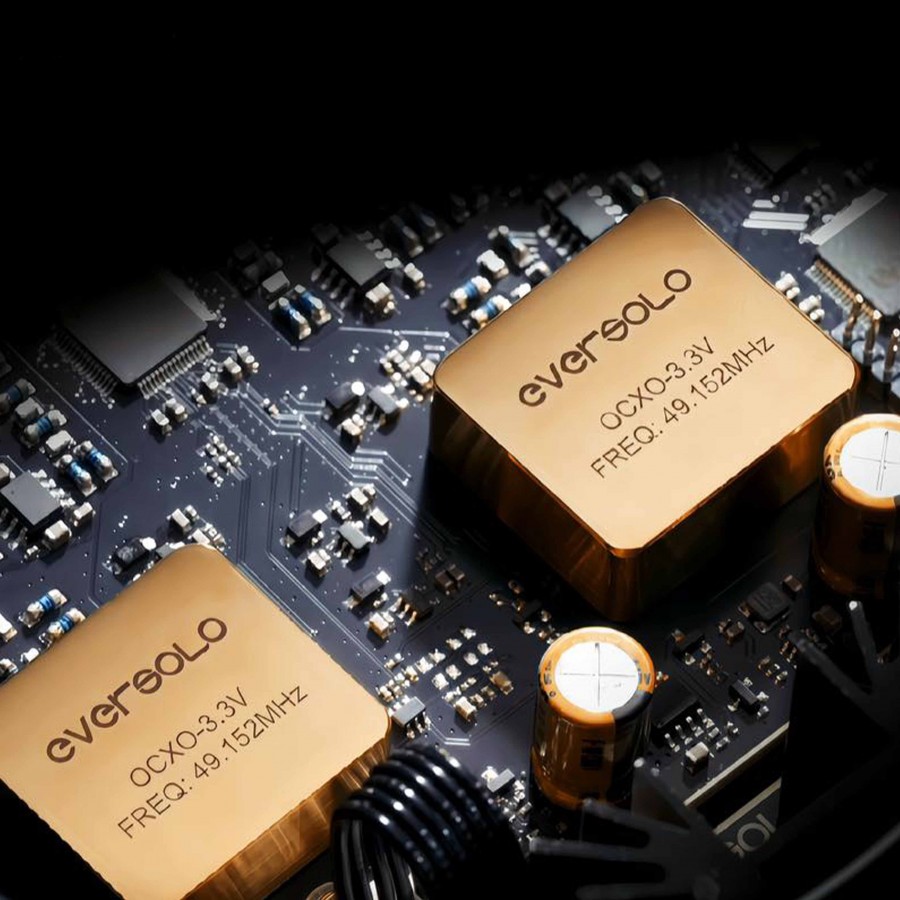

OCXO Clock Oscillators
At the heart of the **DMP-A10** lie two ultra-high-precision **OCXO clock oscillators**, engineered for flawless signal processing at any recording resolution. These are the true masterpieces of the DMP-A10, delivering an extraordinary level of precision that eliminates any fluctuations during signal processing. The result? Incredibly low jitter and impeccable audio clarity. With these oscillators at work, the DMP-A10 ensures your music is reproduced with stunning accuracy, capturing every nuance and detail just as it was intended to be heard.

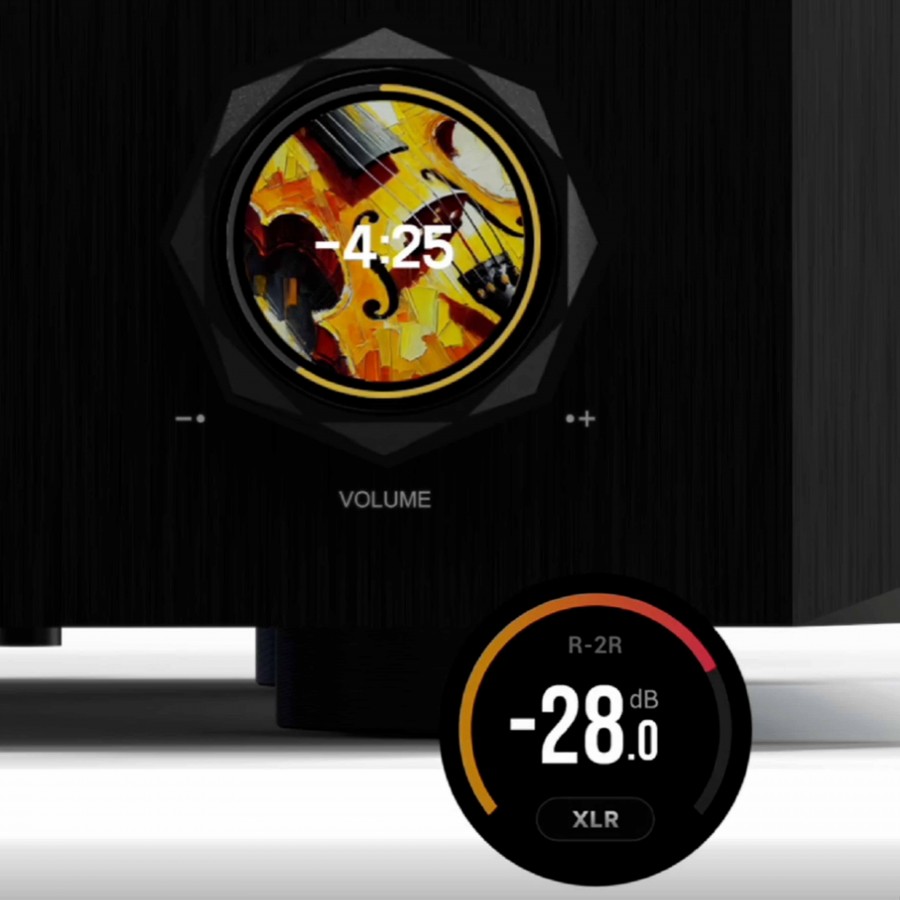

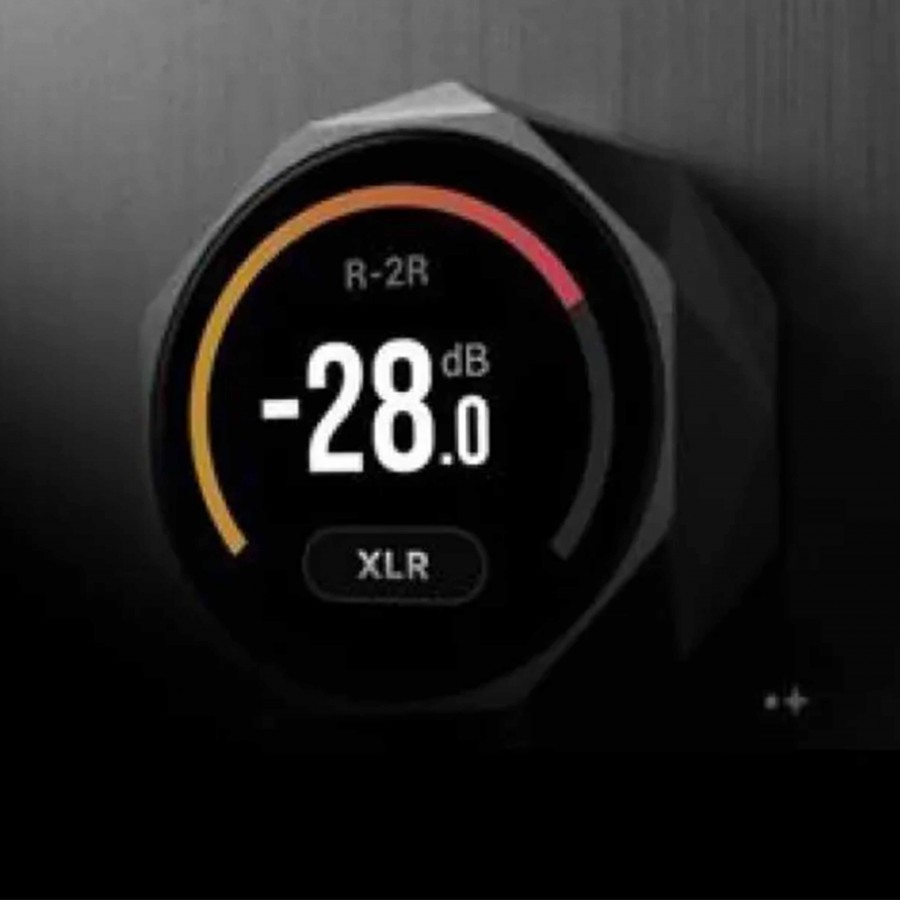

High-end R2R volume control
DMP-A10 preamplifier stage features R2R volume control, made up of precision resistors and relays. These components ensure precise volume control. In fact, volume control is performed by 64 relays, eliminating any distortion or noise present in the analog signal.
DMP-A10 CONNECTIVITY
DMP-A10 DIGITAL TO DIGITAL CONVERTER
The DMP-A10 supports DDC(Digital to Digital Converter) functionality. Digital signals from USB audio input, coaxial/optical input, and ARC input can be output as SPDIF signals or analog signals after various EQ adjustments. Additionally, analog signal input can be captured by the high-spec ADC (up to 192kHz) , then output as SPDIF signals or analog signals after EQ adjustments.
DMP-A10 SPECIFICATIONS
| Specifications | |
|---|---|
| Product type | Streamer |
| Touch screen | 6" LCD Full HD |
| RAM | 4Go DDR4 |
| ROM | 64Go eMMC |
| DAC | AK4191EQ + AK4499EX |
| USB interface | XMOS XU316 |
| AOP | OPA1612 |
| Power Supply | Dual low-noise linear + digital power supplies |
| SSD Support | M.0 NVME 3.0 protocol 2280 up to 4TB (SSD sold separately) |
| Inputs | 1x Ethernet RJ45 (10/100/1000Mbps) 1x Balanced XLR 1x Single-ended RCA 1x HDMI ARC 2x SPDIF Coaxial 1x USB-B 2x Optical Toslink |
| Outputs | 1x Balanced XLR 1x Single-ended RCA 1x HDMI I2S 1x SPDIF Coaxial 1x Optical Toslink 2x USB-A 2x Subwoofer output |
| 12V trigger | |
| Wireless coinnectivity | 2.4G+5G dual-band WiFi Bluetooth 5.0 |
| Suppported sample rates | USB / I2S: PCM up to 32bit 768kHz, DSD up to DSD512 Optical / Coaxial: PCM up to 24bit 192kHz, DSD DoP64 HDMI ARC: PCM up to 24bit 192kHz |
| Supported streaming services | Tidal Qobuz Amazon Music Deezer Apple Music Highresaudio Paradise Radio |
| Supported transmission protocols | WebDAV UPnP AirPlay DLNA Tidal Connect Roon Ready ... |
| Supported Bluetooth Codecs | SBC AAC aptX aptX HD aptX LL LDAC |
| Compatible OS (USB) | Windows 10 / 11 Android iOS |
| RCA output | |
|---|---|
| Output level | 2.1Vrms |
| Frequency response | 20Hz - 20kHz (±0.25dB) |
| THD+N | < 0.000010% (-119dB) @ A-wt |
| Crosstalk | > -121dB |
| Dynamic range | > 125dB |
| SNR | > 125dB |
| XLR output | |
|---|---|
| Output level | 4.2Vrms |
| Frequency response | 20Hz - 20kHz (±0.25dB) |
| THD+N | < 0.00009% (-120dB) @ No-wt |
| Crosstalk | > -121dB |
| Dynamic range | > 128dB |
| SNR | > 128dB |
| General | |
|---|---|
| Power Supply | 110-240VAC 50/60Hz |
| Power consumption | 16W |
| Dimensions | 388*248*90mm |
| Color | Black |
| Package | 1x EverSolo DMP-A10 1x Power cable 1x Remote control 1x Screwdriver |
