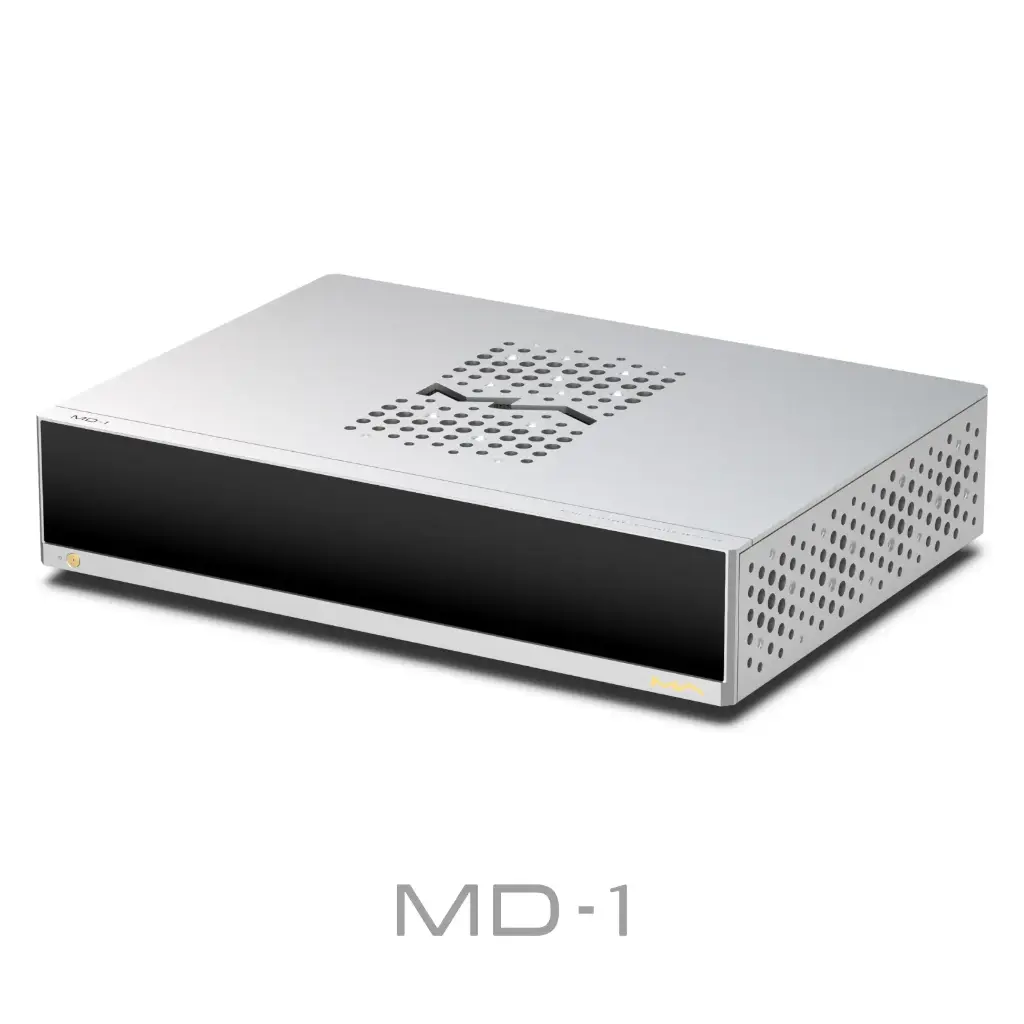

Matrix Audio - MD-1(P) Music Streamer Integrated Amplifier
| Brand: Matrix Audio |
| Product Type: Integrated Amplifier |
Matrix Audio - MD-1 & MD-1P
Music Streamer Integrated Amplifier
Exceptional Sound and Efficiency
The MD-1 and MD-1P deliver outstanding power output. The MD-1 provides 150W per channel at 8 ohms, while the MD-1P offers an even more powerful 300W per channel at 8 ohms. Both bookshelf and floor-standing speakers can be effortlessly driven. Utilizing high-efficiency amplification technology, these amplifiers achieve strong power output with lower energy consumption, reducing heat generation. Advanced PWM signal processing technology effectively minimizes audio signal distortion, ensuring pure, detailed, and flawless sound reproduction - perfectly catering to audiophiles' stringent demands for sound quality.
Minimalism
The MD-1 and MD-1P are meticulously crafted power amplifier by Matrix Audio, innovatively integrating a music streamer and a power amplifier into one device while incorporating a comprehensive streaming ecosystem. With just a single unit and a pair of passive speakers, you can build a high-quality Hi-Fi system, eliminating the complexity of traditional setups and offering a new, convenient solution for seamless home audio experiences.
Dual-Speaker Output Lossless Connection
Matrix Audio's custom-designed gold-plated solid pure copper speaker terminals ensure lower resistance and a secure grip on speaker cables, preserving every detail of the audio signal. The MD-1P goes even further, with two pairs of terminals, allowing two pairs of speakers to be connected simultaneously. Users can easily switch between them via IR remote for quick A/B comparisons, offering a more convenient Hi-Fi experience.
Precision Preamp Volume Control
Featuring a 256-step high-precision digitally controlled analog preamp volume system, it eliminates the sound degradation caused by mechanical wear in traditional potentiometers. Supporting fine adjustments from -80dB to +12dB with 0.5dB steps, it optimizes the voltage output curve through advanced algorithms to ensure perfect phase synchronization between the left and right channels, preserving soundstage integrity even at low volumes. Additionally, a 12-step channel balance compensation allows for fine-tuning based on speaker placement and listening environment.
Preamp & Subwoofer Output
Equipped with preamp and subwoofer output ports featuring synchronized volume control, allowing seamless integration with external power amplifiers. The low-frequency output precisely delivers audio signals below 150Hz, making it easier to connect an active subwoofer and extend the ultra-low-frequencies. The MD-1P goes even further, with dual low-frequency outputs, ensuring perfect compatibility for larger listening spaces requiring dual subwoofers. Additionally, a trigger interface enables power synchronization with active subwoofers, eliminating the need for manual power switching and enhancing convenience.
Matrix Audio MD-1(P) Connectivity
1.Earth Connection 2. Phono Input 3. RCA Input 4. XLR Input 5. Preamp Output 6. Subwoofer Output 7. Wireles Antennnas 8.Speaker Terminals 9.Mains Input 10.Coaxial digital inputs 11.Optical digital inputs 12.HDMI ARC Input 13. USB 2.0 Audio Input 14.USB 2.0 Connection 15. LAN 1Gbps Connection 16. Trigger In/Output
Support streaming protocols including Roon Ready, Audirvana, TIDAL Connect, Spotify Conncet, AirPlay2, QPlay and UPnP/DLNA.
Access an extensive library of high-resolution music, including TIDAL, Qobuz, HIGHRESAUDIO and internet radio - all seamlessly integrated into one device.
Specifications Matrix Audio MD-1 & MD-1P
Matrix Audio MD-1 & MD-1P Manual
Digital Input
COAXIAL & OPTICAL | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD 2.8MHz (DoP) |
HDMI ARC | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
USB Audio | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native) |
HD Bluetooth
High-Res Bluetooth | Sample Rate ：PCM 16Bit/44.1kHz, 48kHz, 96kHz aptX/aptX |
HD/AAC/SBC/LDAC | Bluetooth version：Bluetooth V5.0 Operating distance：10-15m |
Line in
XLR | Input Impedance：47kΩ MAX Input Level：8VRMS |
RCA | Input Impedance：47kΩ MAX Input Level：4VRMS |
Phono Input
MM Phono Stage Frequency Response：RIAA Input Impedance：47kΩ/100pF Gain：+40dB |
Pre out
RCA | Output Impedance：< 20Ω Output Level：0~2.2VRMS Adjustable SNR: 120dB A-weighting THD+N: < 0.0005%@1k，< 0.0005%@20Hz-20kHz Frequency Response：20Hz-20kHz ±0.2 -3dB@80kHz Crosstalk：> -115dB |
SUB | Output Impedance：< 20Ω Cutoff Frequency：150Hz Output Level：0~2.2VRMS Adjustable |
Speaker Output
| MD-1 | Output Power：2 x 150WRMS@8Ω Output impedance：＜5mΩ Frequency Response：20-20kHz ±0.1, 45kHz@-3dB SNR：122dB A-weighting Crosstalk ：-120dB Gain：+30dB Speaker Impedance：2-16Ω |
| MD-1P | Output Power：2 x 300WRMS@8Ω Output impedance：＜3mΩ Frequency Response：20-20kHz ±0.1, 45kHz@-3dB SNR：122dB A-weighting Crosstalk：-120dB Gain：+33dB Speaker Impedance：A or B 2–16Ω, A and B 4-16Ω |
Network
| LAN | 10/100/1000 Mbps |
| Wi-Fi | 2.4 GHz / 5 GHz |
USB
| USB 3.0 | The USB port provides a maximum power of 5V/1A. The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices. |
MA Player
Controller app | MA Remote App |
Local Playback | Format Supported：MP3、WMA、WAV、AIF、AIFC、AIFF、AAC、FLAC、OGG、APE、ALAC、M4A、DSF、DFF、CUE、ISO PCM 16-24Bit/44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz |
| Roon Ready | PCM 16-24 Bit /44.1 kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz DSD 2.82MHz, 5.64MHz, 11.29MHz, 22.58MHz |
| QQ音乐 | The audio specs depend on the service provider |
| AirPlay 2 | The audio specs depend on the service provider |
| DLNA/UPnP | The audio specs depend on the service provider |
| TIDAL Connect | The audio specs depend on the service provider |
| Spotify Connect & Qobuz Connect | The audio specs depend on the service provider |
| vTuner | The audio specs depend on the service provider |
| Radio Paradise | The audio specs depend on the service provider |
Trigger
Trigger in | DC 6-12V<10mA |
Trigger out | DC 12V/50mA MAX |
Storage Extension
M.2 2280 2242 2230 NVMe PCIe SSD slot SSD supporting PCIe 3.0/4.0/5.0 standards，The maximum power specification provided by the expansion slot is DC 3.3V3A. |
Power
Power Voltage | AC 100V-240V 50/60Hz |
MD-1 | Standby Power Consumption: <5W Idle Power Consumption: < 35W MAX Power Consumption: < 700W |
MD-1P | Standby Power Consumption: <5W Idle Power Consumption: < 45W MAX Power Consumption: < 1250W |
Weight & size
MD-1 | Weight: 7.0kg (15.4 pounds) Dimension: • Width: 430 mm (16.93 inches) • Depth: 331 mm (13.03 inches) • Height: 96 mm (3.78 inches) |
MD-1P | Weight: 7.6kg (16.7 pounds) Dimension: • Width: 430 mm (16.93 inches) • Depth: 331 mm (13.03 inches) • Height: 96 mm (3.78 inches) |
Accessories
Power cable *1 IR Remote *1 Printed material *1 |
For improvement purpose, specifications subject to changes without prior notice.
The MD-1 and MD-1P deliver outstanding power output. The MD-1 provides 150W per channel at 8 ohms, while the MD-1P offers an even more powerful 300W per channel at 8 ohms. Both bookshelf and floor-standing speakers can be effortlessly driven. Utilizing high-efficiency amplification technology, these amplifiers achieve strong power output with lower energy consumption, reducing heat generation. Advanced PWM signal processing technology effectively minimizes audio signal distortion, ensuring pure, detailed, and flawless sound reproduction - perfectly catering to audiophiles' stringent demands for sound quality.
Exceptional Sound and Efficiency
HD Bluetooth
For situations where high-resolution streaming is not convenient, the MD-1 and MD-1P also offer HD Bluetooth playback. Featuring Bluetooth 5.0, they support audio transmission up to 96kHz and multiple high-quality codecs including ptX, aptX HD, AAC, SBC, and LDAC. This ensures that audio streamed to your sound system maintains exceptional detail and overall listening quality, allowing you to enjoy high-fidelity music anytime, anywhere.
Comprehensive Digital Connectivity
Featuring up to four optical and coaxial inputs, it effortlessly accommodates multiple devices in a home entertainment setup, whether it’s a set-top box, gaming console, or Blu-ray player. The HDMI ARC interface enables high-quality audio transmission from your TV, while the USB Audio input allows seamless computer audio playback. This ensures that music from both your TV and computer can be enjoyed through a high-fidelity sound system.
Shareable Internal Storage
An NVMe SSD slot is located at the bottom of the chassis, allowing for easy installation of an SSD. With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.
Seamless Network Connectivity
Gigabit Ethernet is undoubtedly the best way to connect the device, ensuring stable transmission of high sampling rate PCM and DSD audio. However, if wiring is inconvenient in your home setup and running a wired connection isn’t feasible, Wi-Fi 6 offers a simple and reliable alternative, allowing you to enjoy high-quality audio effortlessly.
Phono Input
We built a MM cartridge phono preamp with finely tuned low-noise RIAA curve. Simply connect your turntable’s phono output to the MD-1/MD-1P to effortlessly set up a complete vinyl playback system. Immerse yourself in the unique musical charm of vinyl records, making it incredibly convenient for those exploring the vinyl experience.
