Matrix Audio -TT-1 digital audio transport
| Brand: Matrix Audio |
| Product Type: Network Streamers |
Matrix Audio -TT-1 digital audio transport
TT-1 is a mid-range digital audio transport from Matrix Audio. Inheriting the essence of Matrix Audio's core technologies, it also leaves room for future upgrades. Whether you are an audiophile seeking enhanced sound quality or an advanced audio enthusiast looking to elevate your digital source, the TT-1 is an excellent digital source for your audio system.
The ever-evolving MA Player Hi-Fi Streamer OS and MA Remote App seamlessly adapt to both iOS and Android devices. Whether on a smartphone or a tablet, enjoy a smooth and intuitive interactive experience.

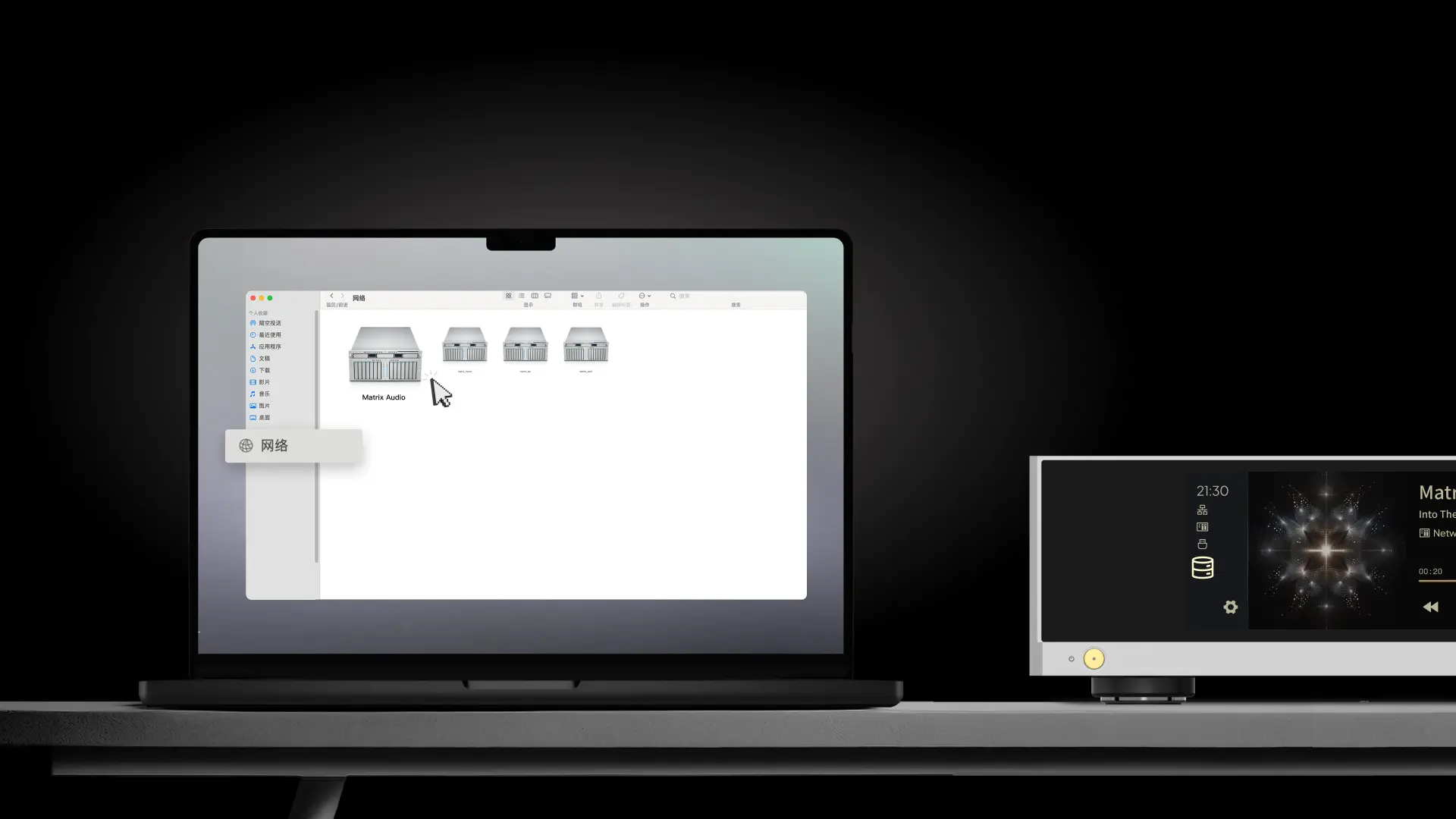

Shareable Internal Storage
With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.

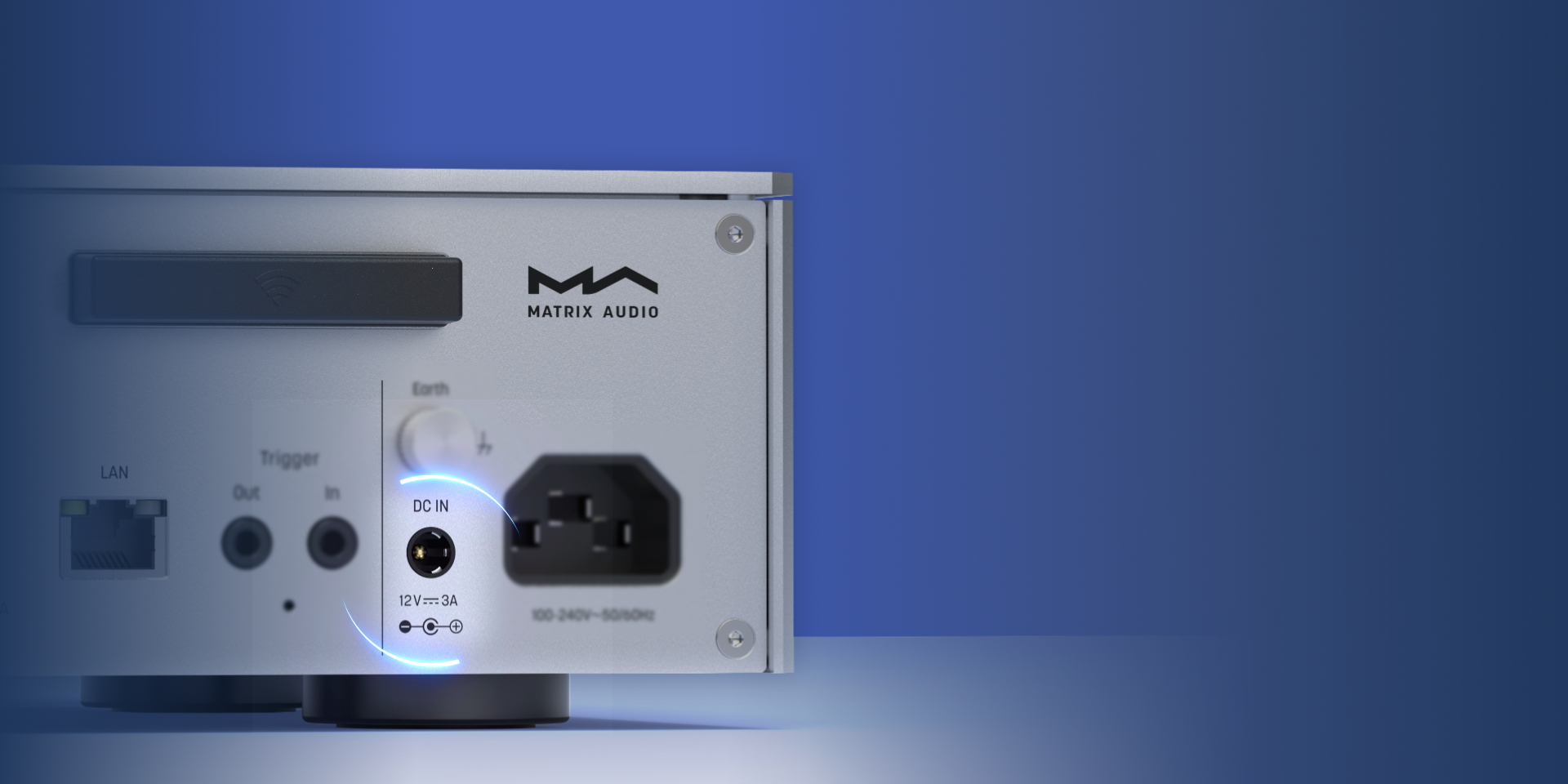

Option For Linear Power

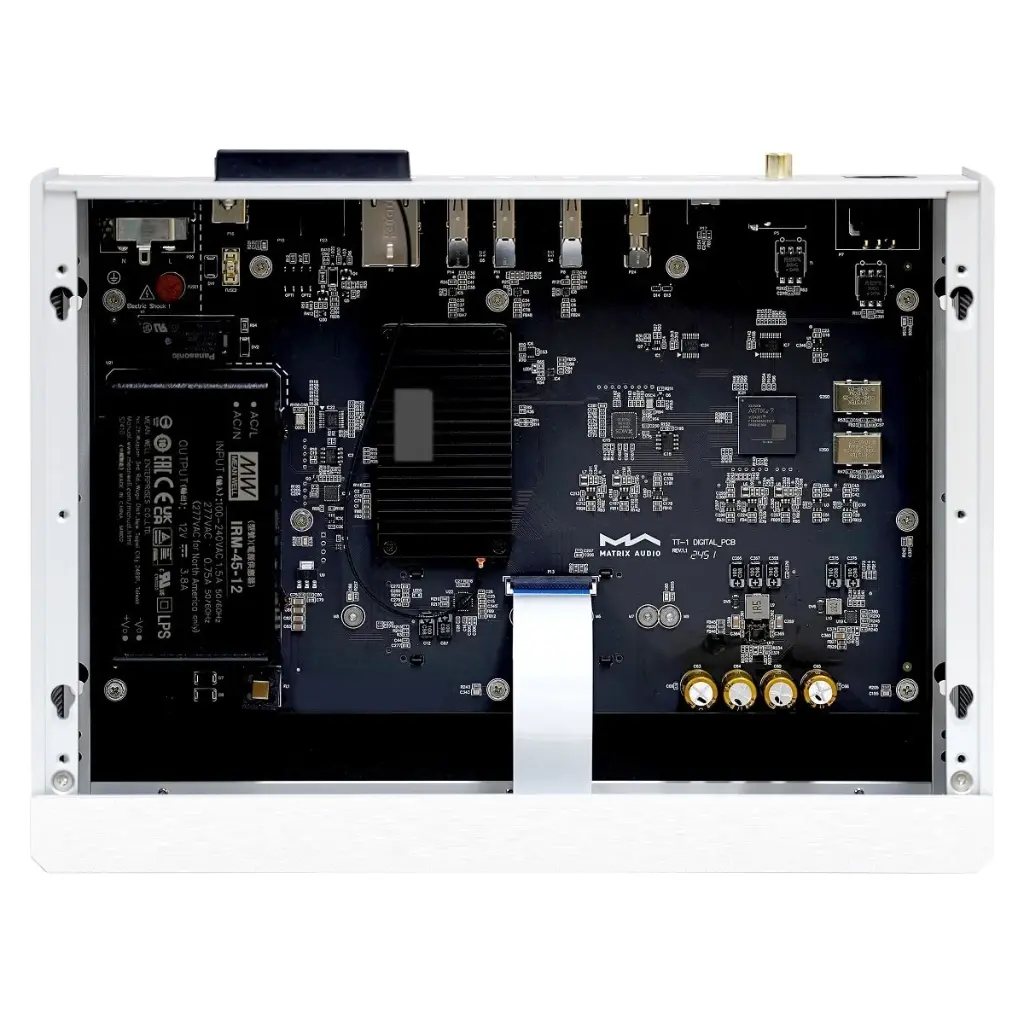

The TT-1 is specially designed with an DC power input to unlock its full performance potential with adding a linear power supply. When both external power and AC power are connected, the system prioritizes the external power supply and disconnects the AC power, retaining only the ground connection. Additionally, the product is equipped with a power filter and multiple low-noise LDOs to power each circuit unit independently, ensuring pure and stable power delivery in every aspect.

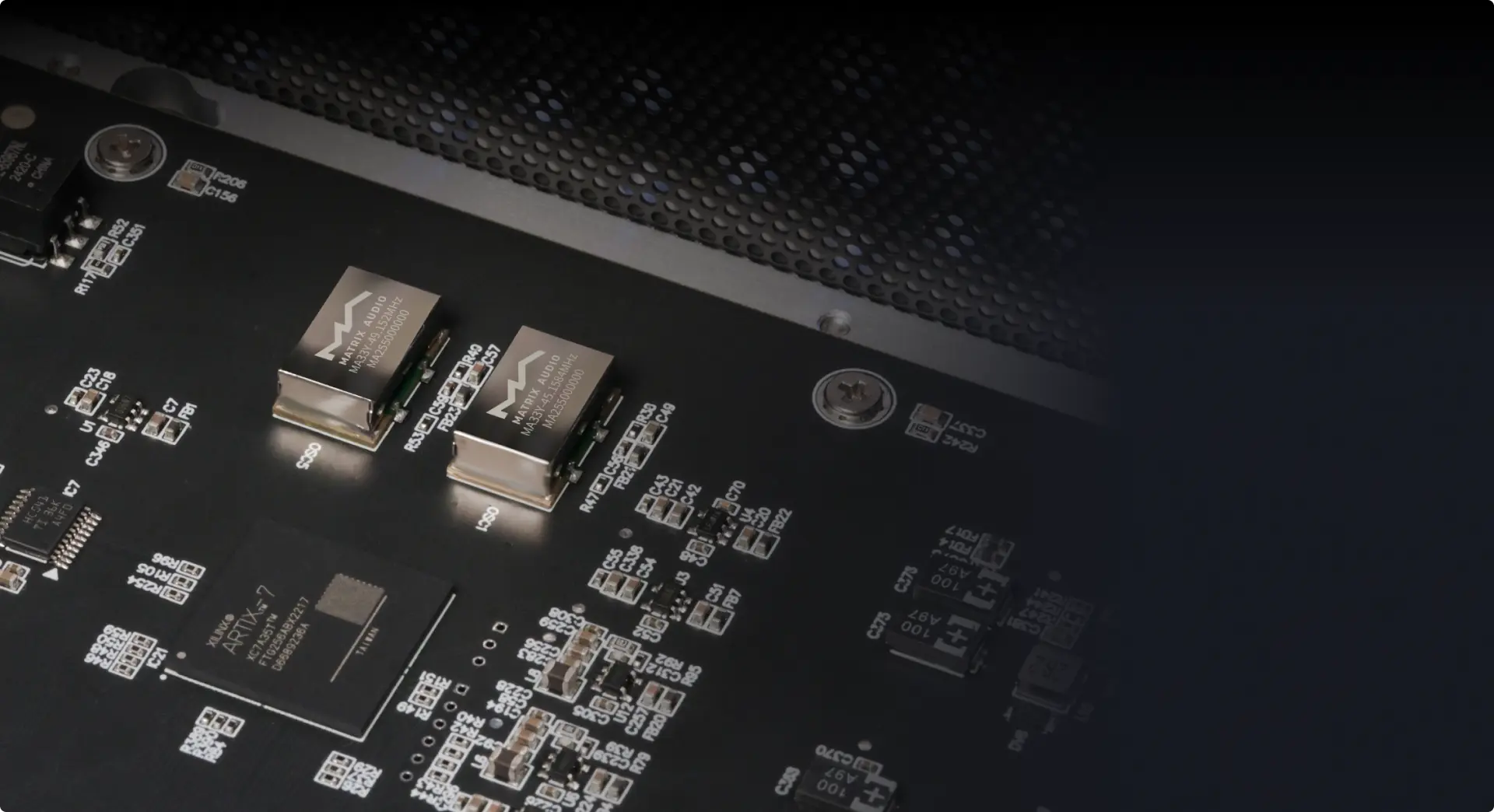

Dual Femtosecond Clock
Equipped with two ultra-low phase noise femtosecond clocks, each dedicated to serving as the clock reference for 44.1kHz and 48kHz sampling rates and their multiples. Powered by independent low-noise linear regulators, and with intelligent control through FPGA, it automatically handles frequency division and switching operations. This design lays a solid foundation for low-jitter digital audio output.
Play Your Way!
Auto CD Ripping
Auto CD Ripping and Shareable
Internal Storage. With the SMB protocol, computers on the same network can easily access the device's storage, making it simple to manage your music library. Additionally, the device can function as a NAS, enabling other streamers on the same network to seamlessly play the stored music.
SSD Storage Fast And Quiet
The bottom of the device features an NVMe SSD slot, allowing for the installation of an SSD to expand internal storage. A specially designed ultra-low-noise independent power supply ensures a quiet operating environment for the SSD, which surpasses what an ordinary computer can offer.
TT-1 Specifications
Digital Output
COAXIAL, OPTICAL & AES/EBU | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD 2.8MHz (DoP) |
| IIS LVDS | PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz |
| DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz | |
| USB DAC | Depends on the specifications supported by the connected USB DAC device. |
| The USB DAC port provides a maximum of 5V/1A low-noise power supply. |
Network
| LAN | 10/100/1000 Mbps |
| Wi-Fi | 2.4 GHz / 5 GHz |
USB
| USB 3.0 * 2 | The USB port provides a maximum power of 5V/1A. |
| The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices. |
Trigger
| Trigger in | DC 6-12V<10mA |
| Trigger out | DC 12V/50mA MAX |
Storage Extension
| M.2 2280 2260 2240 NVMe PCIe SSD slot *1 | |
| The maximum power specification provided by the expansion slot is DC 3.3V/3A. |
Power Specs
| AC Input | Wide voltage switching power supply Power Voltage: AC 100V-240V 50/60Hz Power Consumption: < 35W |
| DC Input | External power voltage: DC 12V ±10% External power wattage: Larger than 35W Power plug: Outer diameter 5.5mm; inner diameter 2.1mm (+ for inner, - for outer) |
Weight & Size
| Weight | 2.76kg (6.08 pounds) |
| Size | Width: 280 mm (11.02 inches) |
| Depth: 210 mm (8.27 inches) | |
| Height: 82 mm (3.23 inches) |
Accessories
| Power cable *1 | |
| Printed material *1 | |
For improvement purpose, specifications subject to changes without prior notice.
