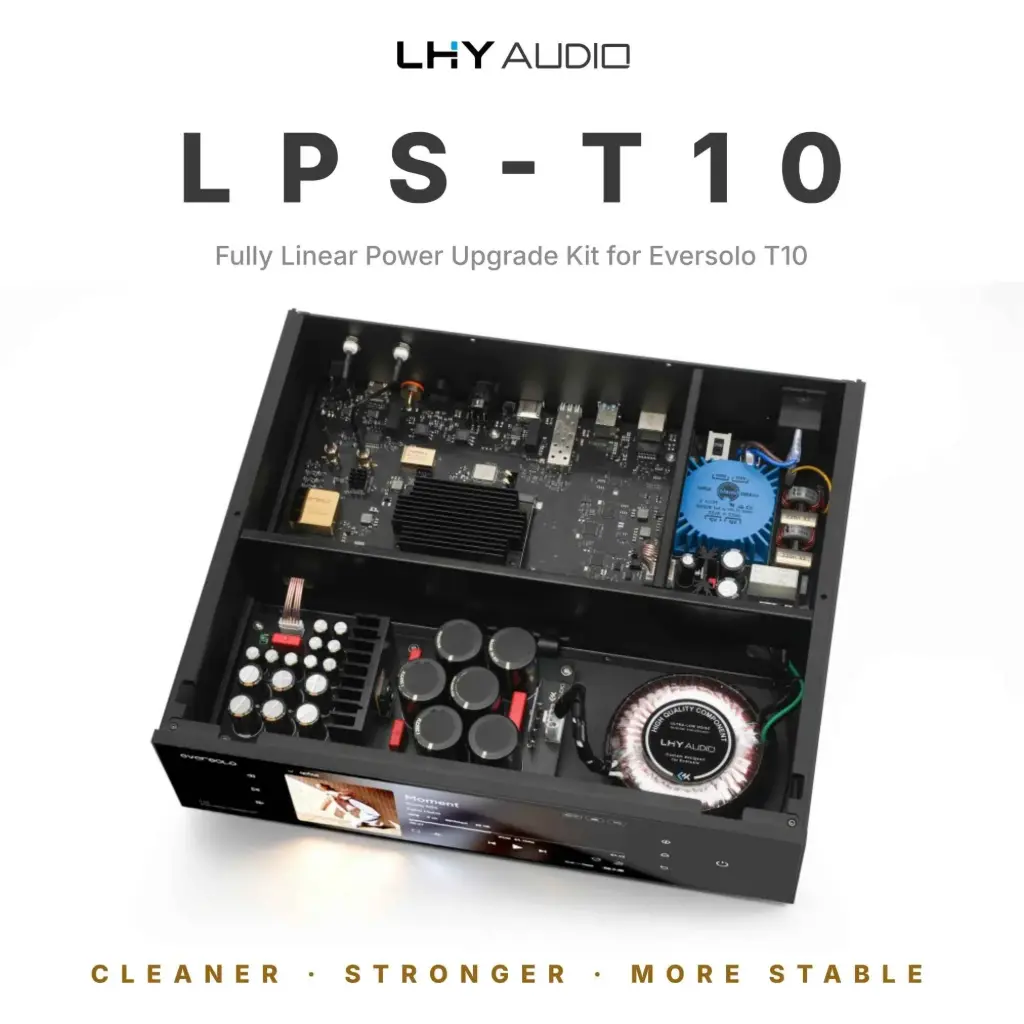

LHY LPS-T10 for EVERSOLO T10
From mixed power to a dual-transformer, fully linear architecture.
A dual-transformer, fully linear architecture further optimizes the T10’s internal power.
Original-location fit · no external enclosure · no chassis cutting
Take the T10 further. Start with power.
Factory-location fit
- Uses the original mounting points
- Connects through the original internal connectors
- No chassis cutting required
- Exterior and controls remain unchanged
Factory-location fit
Original-location fit. No chassis cutting.
LPS-T10 is designed around the T10’s original internal space, mounting points and connectors. No chassis cutting is required, and the original exterior and controls remain unchanged.
Laboratory measurement
The 3 A laboratory high-load test record shows a 94.82% ripple reduction.
Under the same LHY Audio laboratory conditions, with only the power supply changed, the Original T10 PSU measured 61.67 µVrms and LPS-T10 measured 3.192 µVrms.
Original T10 61.67 µVrms
LHY Audio LPS-T10 3.192 µVrms
Tested under controlled conditions in the LHY Audio laboratory. Under the same 3 A high-load condition, only the power-supply assembly was changed. The 94.82% figure is the reduction calculated from this test record; readings can fluctuate and the value is not guaranteed.
Technical specifications
LPS-T10 technical specifications.
Product typeInternal fully linear power-supply upgrade kit
Compatible hostEversolo T10
ArchitectureFully linear, dual-transformer
AC input115 V or 230 V AC · manual selection
Regulated output12 V DC
Main transformerLHY Audio custom toroidal transformer · 7N OFC windings
Main-filter capacitance90,000 µF · approximately 3.2× stock
RectificationLT4320-based full-wave ideal rectification
Linear regulationADI LT3041 on the auxiliary board and LT3042 on the main DC board, both with PNP current expansion
Output wiringOCC cable set
What's in the box
The complete upgrade kit.
- AC input and EMI module with Talema transformer and linear regulation
- DC linear regulator board
- LHY Audio-designed custom 7N OFC toroidal transformer
- OCC output cable set
- 6-pin ribbon cable set
- Phillips screwdriver and hex key
- Protective gloves
The Eversolo T10 shown in product imagery is not included.
LPS-T10 is an aftermarket upgrade product designed for use with Eversolo T10. Eversolo is a trademark of its owner and is referenced only to identify compatibility.
The components shown reflect the current product design. Subject to supply availability, individual parts may be replaced with equivalent alternatives serving the same function and meeting no lower rated parameters, safety classifications and reliability requirements. Changes affecting the core architecture, key advertised specifications or compatibility will be disclosed on the product page.
Frequently asked question

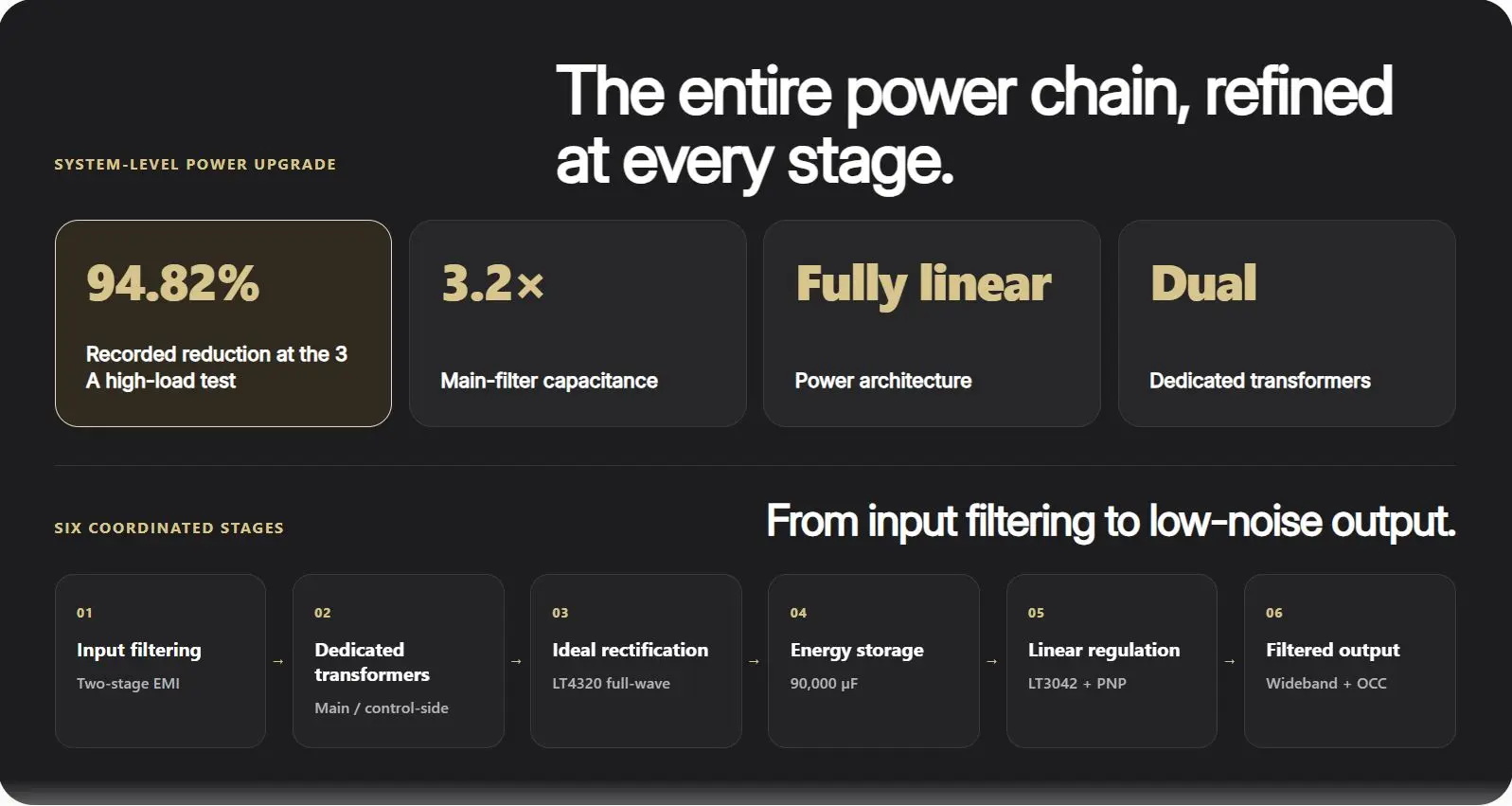

Compared with the original T10, LPS-T10 optimizes the entire power path stage by stage: AC-input filtering, a fully linear architecture, LT4320-based ideal rectification, 90,000 µF of main-filter capacitance versus the original 28,200 µF, LT3042 + PNP low-noise regulation, wideband output filtering and OCC output wiring. Together, these changes form a complete power-chain upgrade and produced lower recorded ripple under both test conditions shown on this page.
The two transformers give each supply path a dedicated role. The LHY Audio-designed 7N OFC transformer serves the main supply, while a Talema transformer with linear regulation powers the display, control and standby circuits. Each path can therefore be designed around its own load. Making the control-side supply linear also removes the original auxiliary switch-mode stage as a potential source of high-frequency switching noise.
The page records two laboratory test conditions: no load and a 3 A high-load condition. At no load, the Original T10 measured 27.65 µVrms and LPS-T10 measured 2.726 µVrms; at 3 A, the readings were 61.67 µVrms and 3.192 µVrms respectively. The ripple reduction in the 3 A high-load test record is calculated as (61.67 − 3.192) ÷ 61.67 = 94.82%. Readings may fluctuate and are not guaranteed; 3 A denotes the laboratory test-load condition, not an output specification.
LPS-T10 is an internal upgrade kit and requires opening the chassis. Follow the installation guide to disconnect the relevant ribbon cables, remove the original power-supply components, and install the new modules at the original mounting points and connectors. Disconnect mains power and allow sufficient capacitor-discharge time before starting; if you are not comfortable working inside audio equipment, use a qualified technician.
If you do not want to take any risk: Choose Magna Hifi install service option!
Under the same test conditions, lower ripple means less residual AC riding on the DC supply, which can help reduce the opportunity for power-supply noise to couple into downstream circuitry. In some highly resolving systems, this may be perceived as a quieter background and clearer low-level detail. The audible degree will still vary with the complete system, mains quality, setup, room and listener.
