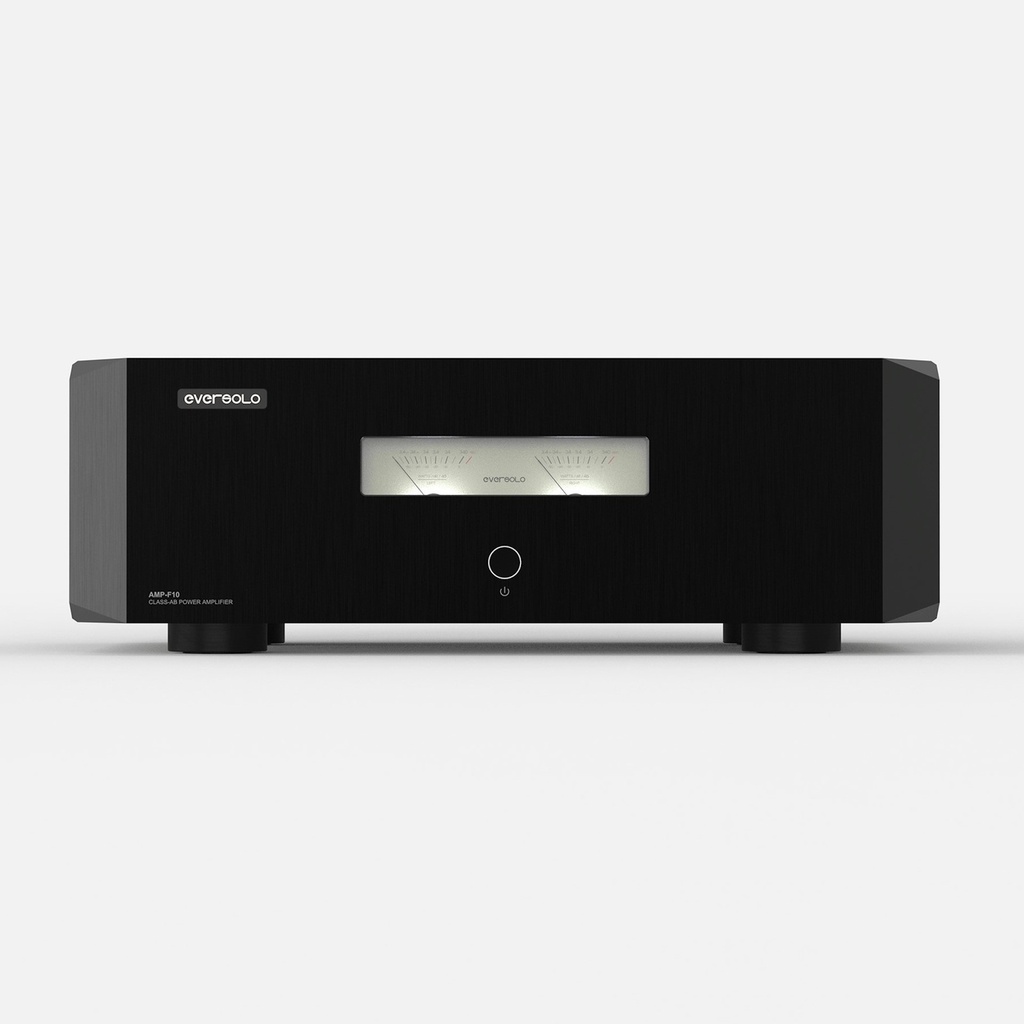

EVERSOLO – AMP-F10 Mosfet Stereo Power Amplifier (320W / 4Ohm)
AMP-F10 Delivers up to 950W in bridged mode and 320W per channel at 4 ohms, ensuring powerful performance across all volume levels. Whether you’re enjoying stereo sound at home or experiencing the electrifying atmosphere of live music in a large space, the AMP-F10 delivers impressive power that draws you into an unparalleled soundstage.
*At 8 ohms, it can provide 200W of power per channel, and up to 650W in bridged mode. *At 4 ohms, it can provide 320W of power per channel, and up to 950W in bridged mode.
| Brand: EverSolo |
| Product Type: Power Amplifiers |
AMP-F10 Stereo Power Amplifier

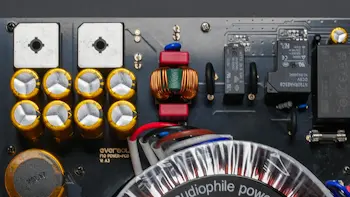

Advanced DC Filtering Circuit
The AMP-F10 employs an innovative DC filtering circuit between the main AC supply and audio circuit, effectively removing low-frequency DC interference. This design ensures that only clean AC power is delivered to the audio circuits, effectively enhancing the performance of the audio circuit while reducing the hum from the toroidal transformer.

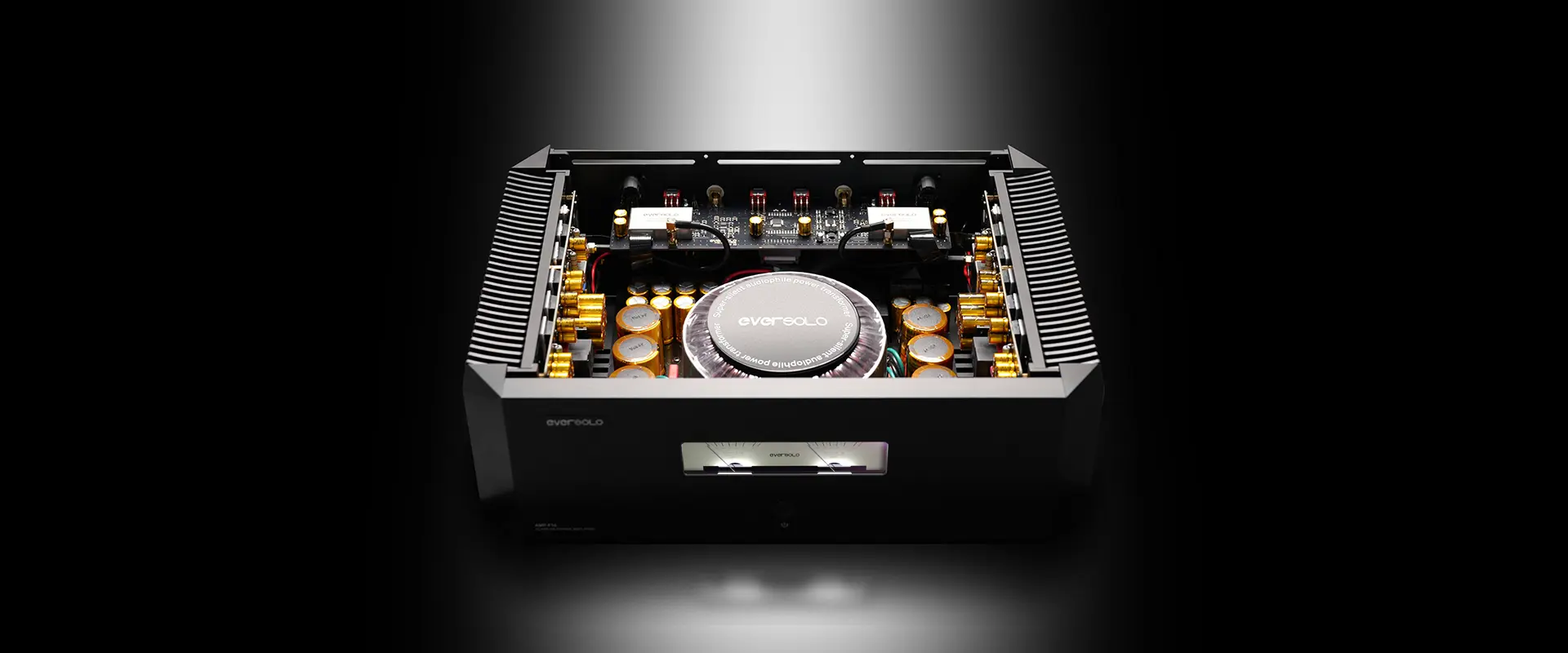

Superior Sound Enduring Reliability
Designed with durability and stability in mind, the AMP-F10 features premium components and fine craftsmanship for long-term performance. Whether delivering intense volume or supporting extended playback, the AMP-F10 operates reliably, letting you enjoy the pleasures of music worry-free.

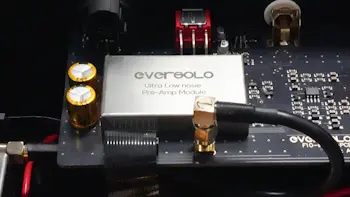

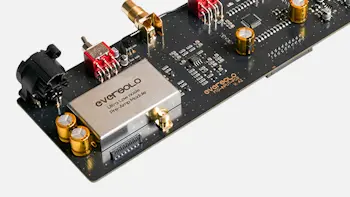

High-Fidelity Audio Processing
The AMP-F10 is equipped with advanced dual differential amplifiers, which are tailored for low-level audio signals. Its symmetrical circuit design and negative feedback technology minimize distortion, ensuring high-fidelity and high linear audio output. This design not only expands dynamic range but also effectively suppresses common-mode noise(such as power and environmental interference), keeping the output sound broad and natural at any volume levels.

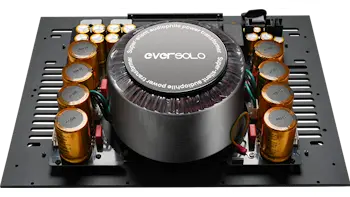

1000W Dual-Channel Independent Linear Power Supply
The AMP-F10 is equipped with a 1000W dual-channel independent linear power supply, providing robust, stable power to every note. This design not only prevents interference between the two channels but also provides each channel with dedicated, powerful current. It ensures that the left and right channels deliver independent and balanced performance, resulting in a fuller and more precise stereo soundstage. With a powerful 1000W reserve for high dynamic audio, the low frequencies are impactful and strong, while the mid and high frequencies remain smooth and rich, every emotion and strength in music is released for a truly immersive listening experience.

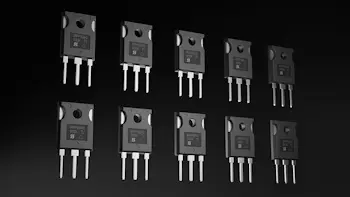

5 Pairs of High-Current MOSFETs per Channel
To improve the consistency of the amplifier circuit, the Eversolo AMP-F10 uses five pairs of precision-matched MOSFET high-current amplification transistors for each channel. The parallel configuration ensures even current distribution, minimizing the potential distortion and inconsistent current distribution issue.

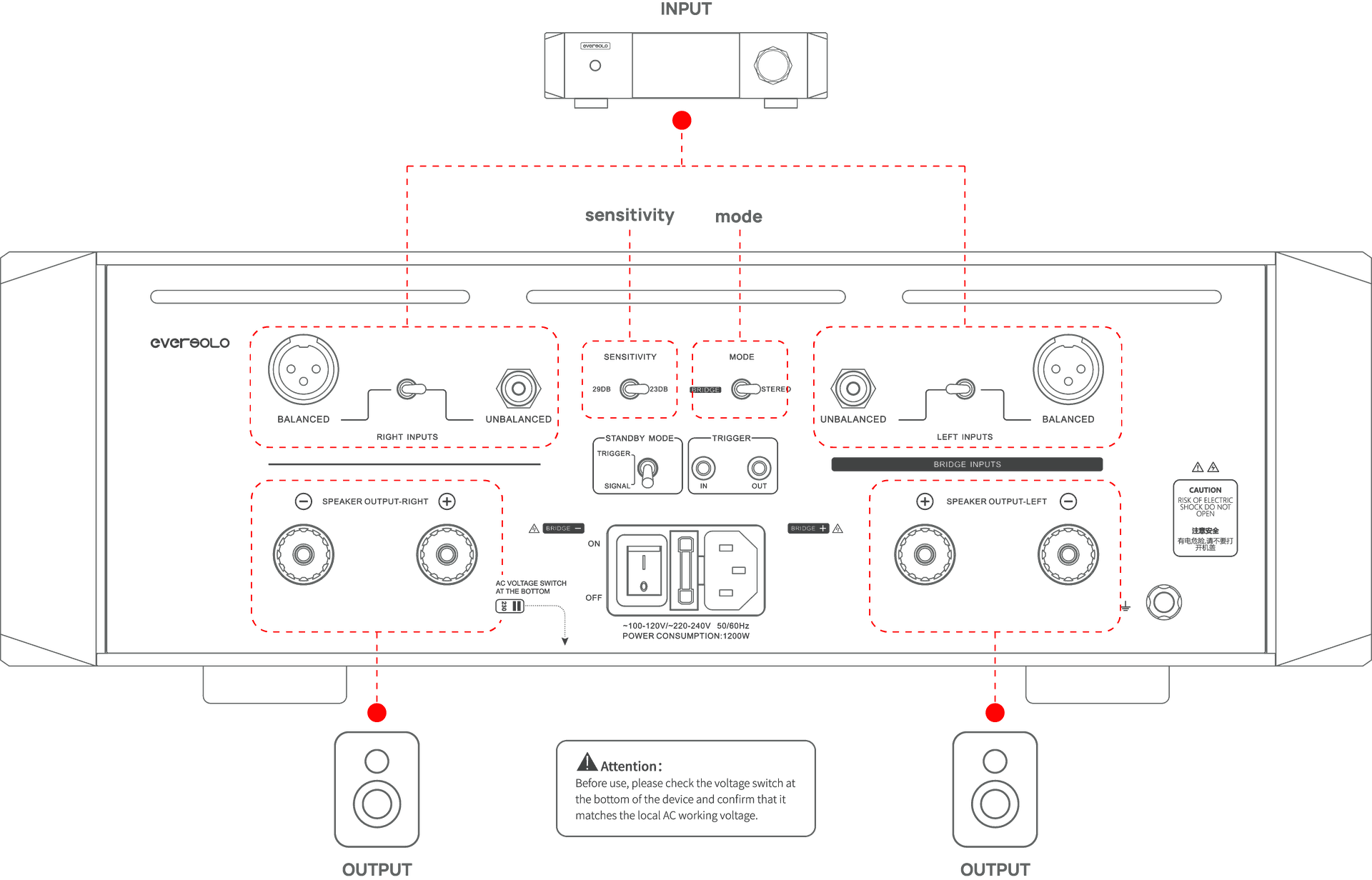

AMP-F10 CONNECTIVITY
AMP-A10 SPECIFICATIONS
Continuous Output Power (120V/240V AC)
- 200W RMS@8Ω
- 320W RMS@4Ω
- 450W RMS@2Ω
- 650W RMS@8Ω (Bridge mode)
- 950W RMS@4Ω (Bridge mode)
THD+N
- THD+N: 0.008%
SNR
- 200W@8Ω/1KHz
- Gain 23dB: ≥113dB @A-wt
- Gain 29dB: ≥110dB @A-wt
Frequency Response
- 10-30KHz @8Ω: ±0.5dB
Crosstalk
- 200W@8Ω/1KHz: ≤-95dB
Input
- RCA Unbalanced1; XLR Balanced1
Input Impedance
- RCA Unbalanced: 10KΩ
- XLR Balanced: 10KΩ
200W@8Ω/1KHz Input Sensitivity
- RCA Input GAIN=23dB: 2.65V
- RCA Input GAIN=29dB: 1.3V
- XLR Input GAIN=23dB: 5.2V
- XLR Input GAIN=29dB: 2.4V
Damping Factor
- 600 @8Ω 1KHz
Weight
- Net Weight: 18Kg
- Gross Weight: 21.5Kg
Packing List
- Power Cable*1
- Trigger Cable*1
- User Manual*1
