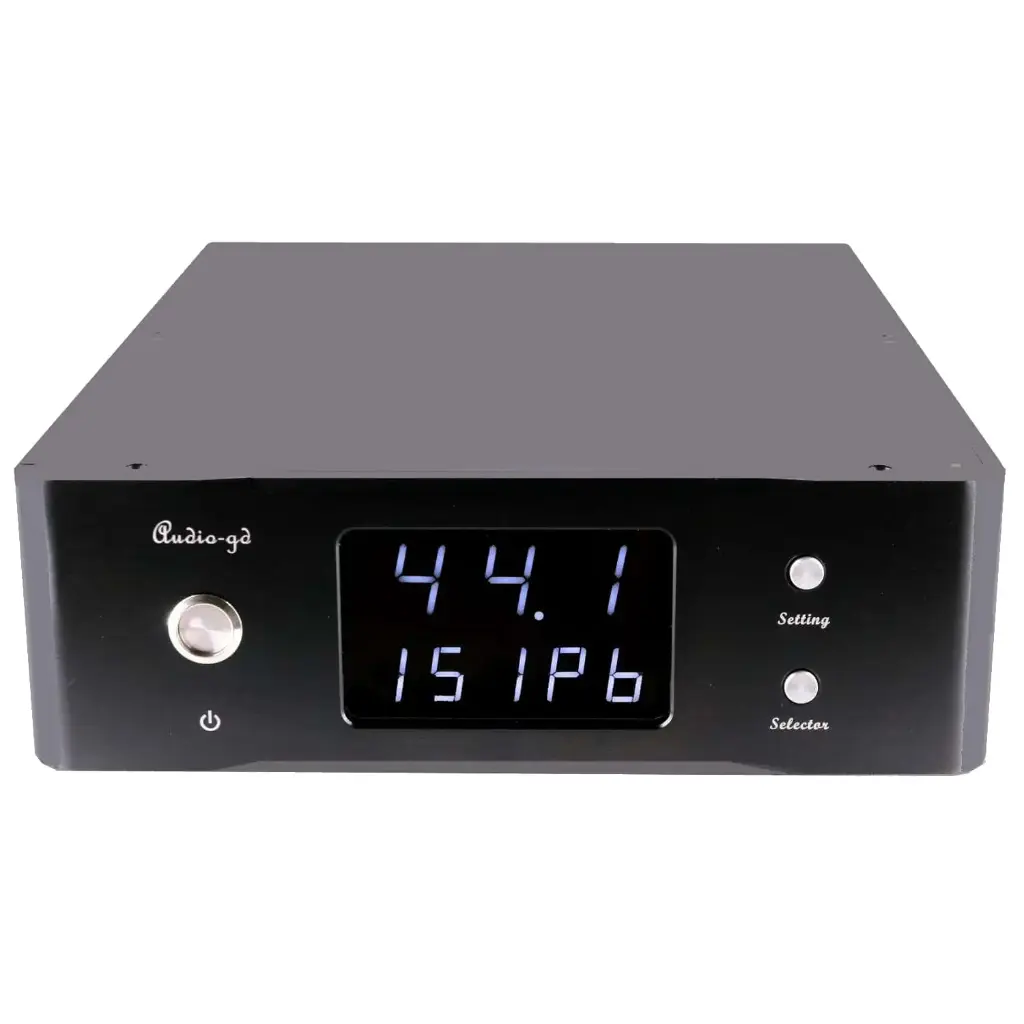

Audio-GD - DI25 DDC Digital interface
The DI25 is equipped with a linear power suplply and I2S (HDMI) Reclocker!
The Audio-GD DI-25 is a high-performance digital interface and I2S reclocker, featuring a dual Accusilicon 90/98MHz clock design. Engineered for versatility, it offers multiple clocking options: utilizing its high-precision internal clocks, operating in slave mode with an external clock, or functioning as a master clock to synchronize third-party devices. This flexibility makes it an ideal component for integration into high-end audio systems, ensuring superior signal accuracy and performance.
| Brand: Audio-GD |
| Product Type: Digital to Digital Converters (DDC) |
USB / I2S CONVERTER & RECLOCKER (DI25 DDC / I2S Reclocker)
Featuring versatile audio outputs such as AES/EBU, RCA Coaxial, and IIS HDMI, this converter guarantees seamless compatibility across a diverse array of devices.
For audiophiles seeking precision, the Special 10MHz Master clock output provides highest accuracy. With both 50 and 75-ohm BNC options, seamlessly connect to your D/A Converter and enjoy a heightened level of audio refinement.
The DI-25 includes a high quality linear power supply.
HIGHLIGHTS
- Amanero USB interface , Support up to PCM384K / DSD512
- Accsilicon 90/98M AS318-B Series Professional Audiophile XO’s
- 50 & 75 ohm impedance 10MHz inputs & outputs
- Integrated 10MHz ultra low jitter/phase noise clock output (50 & 75 ohm output ports)
- All inputs & outputs are galvanic isolated
- FPGA firmware update support to enhance features and sound quality.
DIGITAL INPUTS
- I2S audio input
- HDMI I2S input interface
- Supports MCK up to 40Mhz
- USB audio input
- USB2.0 / USB3.0 support)
- Support Windows, OSX, Linux, ISO
- External 10MHz Clock Input (BNC)
- 50 & 75Ohm inputs available
- 0.3Vpp -3Vpp
- FPGA firmware update port
- Future enhancements.
- Windows Software included
DIGITAL OUTPUTS
- AES/EBU 110Ohm output (XLR)
- Coaxial 75Ohm output (RCA)
- IIS LVDS 100Ohm output (HDMI)
- 10Mhz Master Reference Clock Output (BNC) (9dbm @50 ohm)
DI-25 CONNECTIVITY
1 = AES/EBU XLR 110Ohm Output – 2= S/PDIF RCA 75Ohm Output – 3= BNC 75Ohm 10Mhz Out – 4 = BNC 50Ohm 10Mhz Out
5 = HDMI IIS Output – 6 = BNC 75Ohm 10Mhz Input
7 =BNC 50Ohm 10Mhz Input – 8 = AC Input – 9 = USB-B Audio input –
10- HDMI I2S Input – 11 = Firmware Update port & USB Firmware Reset button
Audio-GD Reports:
- “The built-in HDMI-IIS input can connect to source devices with a compatible HDMI-IIS output.”
- “The HDMI input signal rejects jitter, resynchronizes the clock and data, and regenerates an accurate clock signal, significantly improving the sound quality of connected sources, especially low-end and mid-range devices.”
- “The source’s HDMI output must match the diagram below, and the MCLK signal should be lower than 40MHz (most sources use a 24.576MHz clock, which is compatible with the DI-25HE HDMI input).”
- “We tested the DI-2014 (a 10-year-old device), a $300 CD player, and other sources connected to the DI-25HE. The sound quality improved noticeably, nearly matching the DI-25HE when directly connected to a MacBook Pro
SPECIFICATIONS
| Specifications might subject to change without prior notice | |
| Digital Inputs | |
| HDMI Input | HDMI for I2S audio signals only (NOT standard for TV) |
| USB-B input | USB2.0 – USB3.0 Audio input |
| Windows, OSX, Linux, ISO | |
| BNC 10Mhz Clock Input | 50Ohm (0.3Vpp- 3Vpp) |
BNC 10Mhz Clock Input | 75Ohm (0.3Vpp- 3Vpp) / The 75 Ohm input is multifunctional and can also be used as an S/PDIF input |
| Digital Outputs | |
| HDMI (IIS) * | 3.3V LDVS @ 100 ohms |
| * Only I2S signals, not standard HDMI TV | |
| RCA (Coaxial S/PDIF) | 0.5 Vp-p @75 Ohms |
| XLR (AES/EBU) | 5Vp-p @110 ohms |
| BNC (10Mhz Clock Output) | 10MHz , >9DBm @50 ohm |
| Generic | |
| Operating systems (USB) | Windows, OSX, Linux, ISO |
| Firmware Updates | Windows Software |
| Supported Sample Rates | USB & HDMI IIS : 44.1kHz – 384kHz /32Bit DSD64-512 AES/EBU & SPDIF Outputs: 44.1kHz – 384khz |
| Power Requirements | Version 1: 100-120V AC 50/60 Hz Version 2: 220-240V AC 50/60 Hz |
| Power Consumption | 17 Watt |
| Package Weight | 5kg |
| Dimensions | W240 X L360 X H85 (MM, with feet, Fully aluminium ) |
| Accessories | – USB Cable – USB Blaster (Firmware Updates) |
