EVERSOLO AMP-F2 eindversterker (Klasse-D 2x250W 4 Ohm / 1x450W 2 Ohm)

AMP-F2 Power Amplifier

The EverSolo AMP-F2, developed in collaboration with the Starke Sound team, is a Class D amplifier based on the integration of the latter’s innovative NS600 module. As a result, it offers a high energy reserve, great dynamics and a highly accurate sound. The all-new SAPS switch-mode power supply provides the audio circuit with a clean electrical signal, ensuring very low noise and distortion levels. Bridgeable, the AMP-F2 is a versatile model that can be used in stereo or mono.

EverSolo AMP-F2: A generous power reserve

Based on a Class D NS600 amplifier module from Starke Sound, the EverSolo AMP-F2 is capable of delivering significant power, up to 2x250W RMS at 4 Ohm (1% THD). When the amplifier is used bridged (BTL), i.e. in mono, its power rises to 450W RMS at 2 Ohm (1% THD). This ability to support very low load impedances ensures sufficient power even in configurations using particularly demanding loudspeakers.

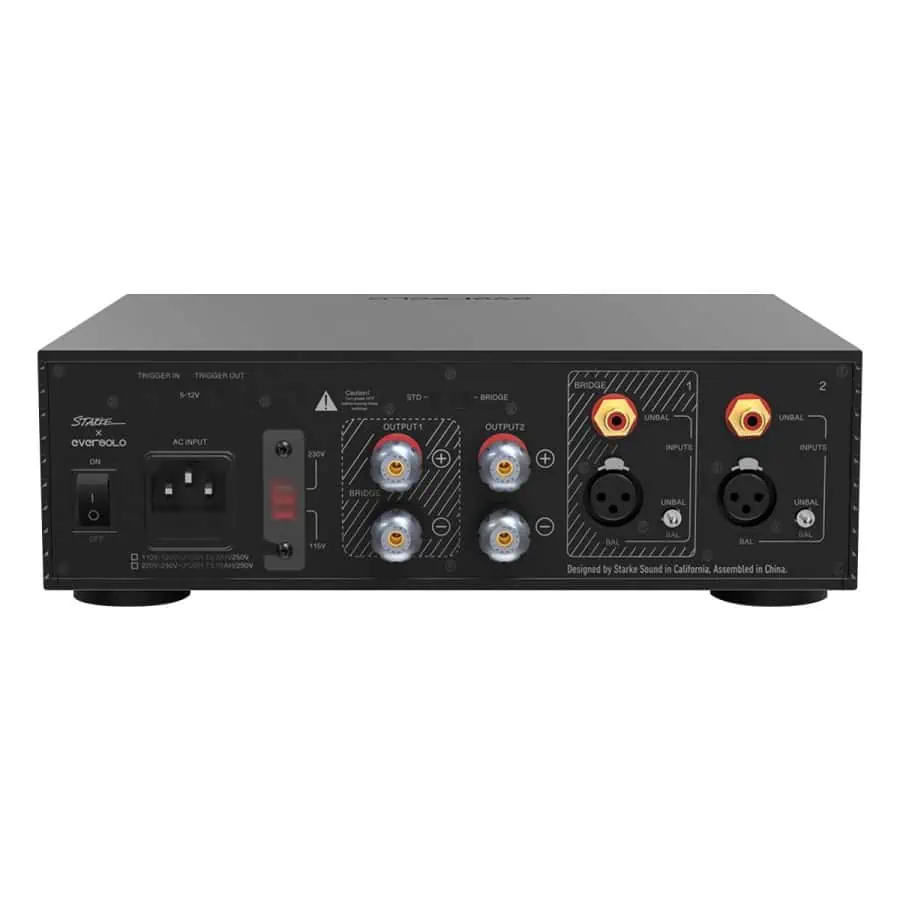

1: Power on/off – 2: Power inlet – 3: Voltage switch – 4: Speaker Output 1 (BTL) – 5: Operating mode (stereo / BTL) – 6: Speaker output #2 –

7: Single-ended RCA input 1 (BTL) – 8: Single-ended RCA input 2 – 9: Balanced XLR input 1 (BTL) – 10: Balanced XLR input 2

AMP-F2 FEATURES

EverSolo AMP-F2: Incredibly accurate sound reproduction

The EverSolo AMP-F2’s NS600 module uses PurePath™ Ultra-HD technology and an advanced feedback design, incorporating an error correction function. This technology achieves an extremely low level of distortion across the entire frequency range for flawless sonic accuracy.

EverSolo AMP-F2: Trigger (input and output)

Equipped with a 5-12V trigger input and output in 3.5mm jack format, the EverSolo AMP-F2 lets you create an automatic on/off chain between your various trigger-equipped devices. This makes for a seamless user experience, as your entire audio system can be switched on and off with a single press.

EverSolo AMP-F2: A generously dimensioned power supply

Using a 600W power supply with high efficiency, low ripple and EMI, the EverSolo AMP-F2 is capable of delivering a stable and powerful output, enhancing the overall dynamics of the system.

EverSolo AMP-F2: Aluminum chassis and shielding

The EverSolo AMP-F2 amplifier features a modern, robust aluminum chassis. Aesthetically pleasing, it also acts as a shield, limiting the impact of interference on the AMP-F2’s circuits.

EverSolo AMP-F2: Low power consumption

The EverSolo AMP-F2 benefits from very low standby power consumption, measured at less than 0.5W. Switched on but without signal, this consumption rises to just 14W. This means the amplifier complies with the European Union’s ErP standards.

EverSolo AMP-F2: A perfectly designed ecosystem

The EverSolo AMP-F2 amplifier is perfectly designed and optimized to accompany the brand’s other products. It’s the ideal companion for the EverSolo DMP-A6, EverSolo DMP-A6 Master Edition, EverSolo DMP-A6 Master Edition Upgrade and EverSolo DMP-A8 streamers, as well as the EverSolo DAC-Z8 and EverSolo DAC Z6 DACs.

AMP-F2 SPECIFICATIONS
